Alternator Power Options

1. CANbus Alternator Controller can transfer up to 10kW power at same voltage. It is installed in cabin with maximum current of 10A as all digital.

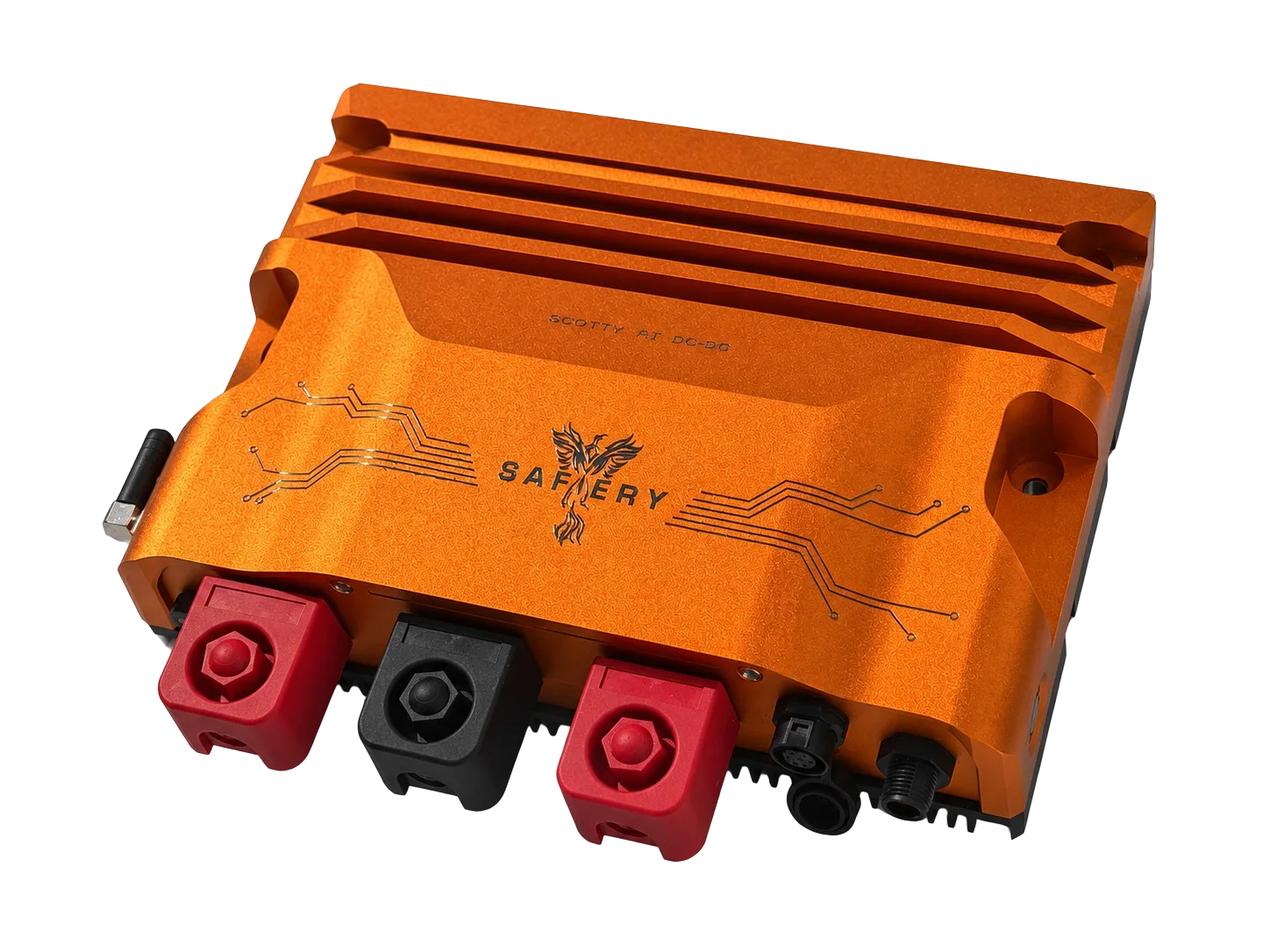

2. Safiery Buck Boost transfers 3,000W from 12V to either 24V or 48V and vice versa.
   It is a bi-directional power converter at 95% efficiency.
   Can be parallelized to double or triple this capacity if required.
   It is Automotive compliant and installed in engine bay.

Video Showing 150A at idle from Iveco Daily Alternator
Using 3kW Buck Boost 12V to 48V

Vehicle (All Diesel, all latest 2020 model)	Listed Alternator Size in Amps Please check your vehicle to confirm	Available Option of adding a second alternator	Power that can be extracted after allowing 40A for daytime driving with air-con on	Lithium Batteries should accept this level of charging for maximum performance
Toyota Hilux 2020	80A	Yes Second Alternator up to 5kW* 12V, 24V or 48V	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Toyota 79 Series	130A but can Upgrade primary alternator to 250A	No	1,300W but 3,000W after upgrade	12V at 130A 48V at 35A
Toyota 200 Series	150A but can Upgrade primary alternator to 250A	No	1,600W but 3,000W after upgrade	12V at 150A 48V at 35A
Ford Ranger 2020	210A	No	2,500W	12V at 200A 48V at 50A
Mercedes Benz X Class V6	200A	No	2,500W	12V at 200A 48V at 50A
Mercedes Benz G Class 300/350	200A	Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Dodge Ram 1500		Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Dodge Ram 2500		Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Ford F150,250,350		Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
GM Light Truck Range		Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Ford Transit Van		Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A
Iveco Daly	180A	No	2,200W	12V at 180A 24V at 90A 48V at 45A
VW Transporter	180A or 250A	No	3,000W	12V at 250A 24V at 120A 48V at 60A
VW Crafter	180A or 250A	No	3,000W	12V at 250A 24V at 120A 48V at 60A
Sprinter 4 x 4	Upgrade primary alternator to 250A	Yes Second Alternator up to 5kW*	5,000W*	12V at 400A (not feasible) 24V at 200A 48V at 100A

* From Second Alternator. Power can also be extracted from primary alternator as an alternative.



Ranger Std Alternator 2.5kW Powering Induction / Air-con



Run Caravan Aircon for 10 Hours from 4WD Power Plant

RUN VAN AIRCON USING 4WD as POWER PLANT





Silence is a Luxury

Yachts are masterpieces of design. Careful placement of controls around the helm, gives you easy charting for adventure. Any man made noise is second to nature’s. Leave the helm and the tables can turn. The incessant drone of a genset and constant attention to fossil fuel stoves confines you in the cabin. This downgrades your purchase and disturbs quiet enjoyment. You deserve to enjoy your hard-earned luxury both below & above deck.

Safiery re-thinks below-deck operations with high efficiency appliances and clean power in the smallest possible space. Designing for immediate use of water makers, hot water, ice makers, refrigeration, air-conditioning and induction cooking reduces size and weight. Compact Lithium Batteries are core to our integrated design. Smart automation results in simplicity of operation and adapts to any challenges. British brand “Integrel” have mastered compact on-engine power. Backed by the global leader, Victron, you receive performance assurance for a complete system from a single point of contact.









Caravan Indoor - Outdoor Comfort

RV's of all sizes can have great layouts and easy to operate systems. However most van builders design on the basis of limited power. As a result, RV's can be lean on appliances and automation. This pulls your purchase up short. You deserve to enjoy this hard-earned luxury to the fullest.

Safiery re-thinks caravan operations with high efficiency appliances, smart lighting and switching. Designing for: ice makers, refrigeration and all-night air-conditioning; induction cooking, bread makers; under floor heating and near instant hot water at minimum size and weight. Personal comfort of air-purification, mattress cooling and C-PAP. Built-in hair dryers. Slimline Lithium Batteries are core to our integrated design. High performance solar is a must. Single touch displays and smart automation adapts to any challenges you may travel into. Voice commands top off simplicity of operation. Backed by global leaders, Victron and Google, you receive performance assurance for a complete system from a single point of contact.



Robust Elegance when Touring

4WD Trays and Canopies can be quality builds designed for the toughest conditions. However, mechanical builders may not be up to speed on the new levels of power and automation available. This pulls your purchase up short. You deserve to enjoy this hard-earned luxury to the fullest.

Safiery re-thinks 4WD/Canopy operations with high efficiency appliances, smart switching and dual colour lighting. Designing for induction cooking, ice makers and refrigeration, and even near-instant hot water at minimum size and weight. Slimline Lithium Batteries are core to our integrated design. We can create 4WD/Tray and Canopy sub-systems that stand alone. Yet, plug these together with IP67 Amphenol connectors for a single integrated system when travelling. High performance solar that also insulates is a speciality. Smart automation adapts to any challenges you may travel into. Backed by the global leader, Victron, you receive performance assurance for a complete system from a single point of contact.



Campervan Space is a Luxury

Many Motorhome and Camper Vans pack the luxury of space into a compact camper. Clean lines and easy to operate systems. However, they can be lean on appliances and automation. This suddenly pulls your purchase up short. You deserve to enjoy this hard-earned luxury to the fullest.

Safiery re-thinks camper-van operations with high efficiency appliances and smart switching. Designing for near-instant hot water, underfloor heating, ice makers, refrigeration, air-conditioning and induction cooking at minimum size and weight. Slimline Lithium Batteries are core to our integrated design. High performance solar that also insulates is a speciality. Smart automation adapts to any challenges you may travel into. Backed by the global leader, Victron, you receive performance assurance for a complete system from a single point of contact.

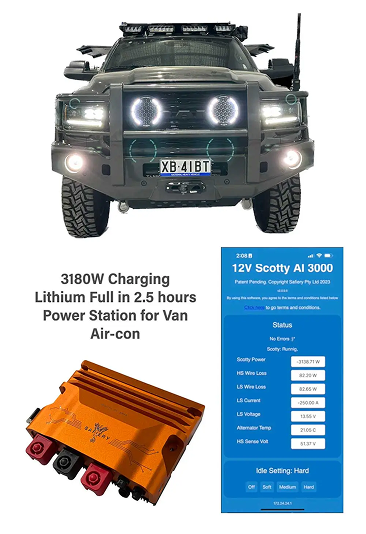

Most Powerfull and Compact 200A Alternator Charging with 200Ah Lithium Available in Market




Guide Publications



"Safiery re-thinks the mobile lifestyle with high efficiency appliances
and clean power in the smallest possible space. "



“Simplicity is at the very heart of this system”

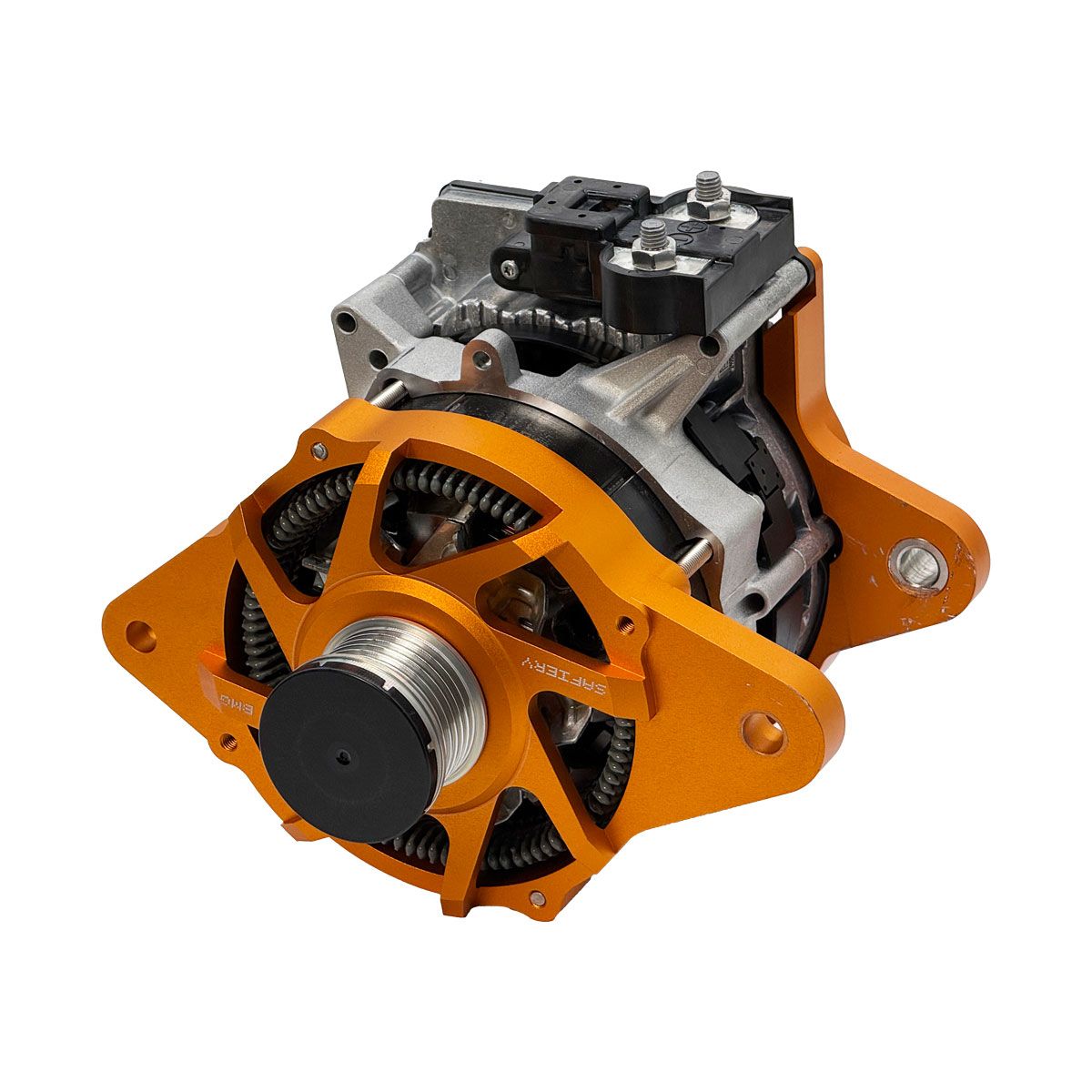

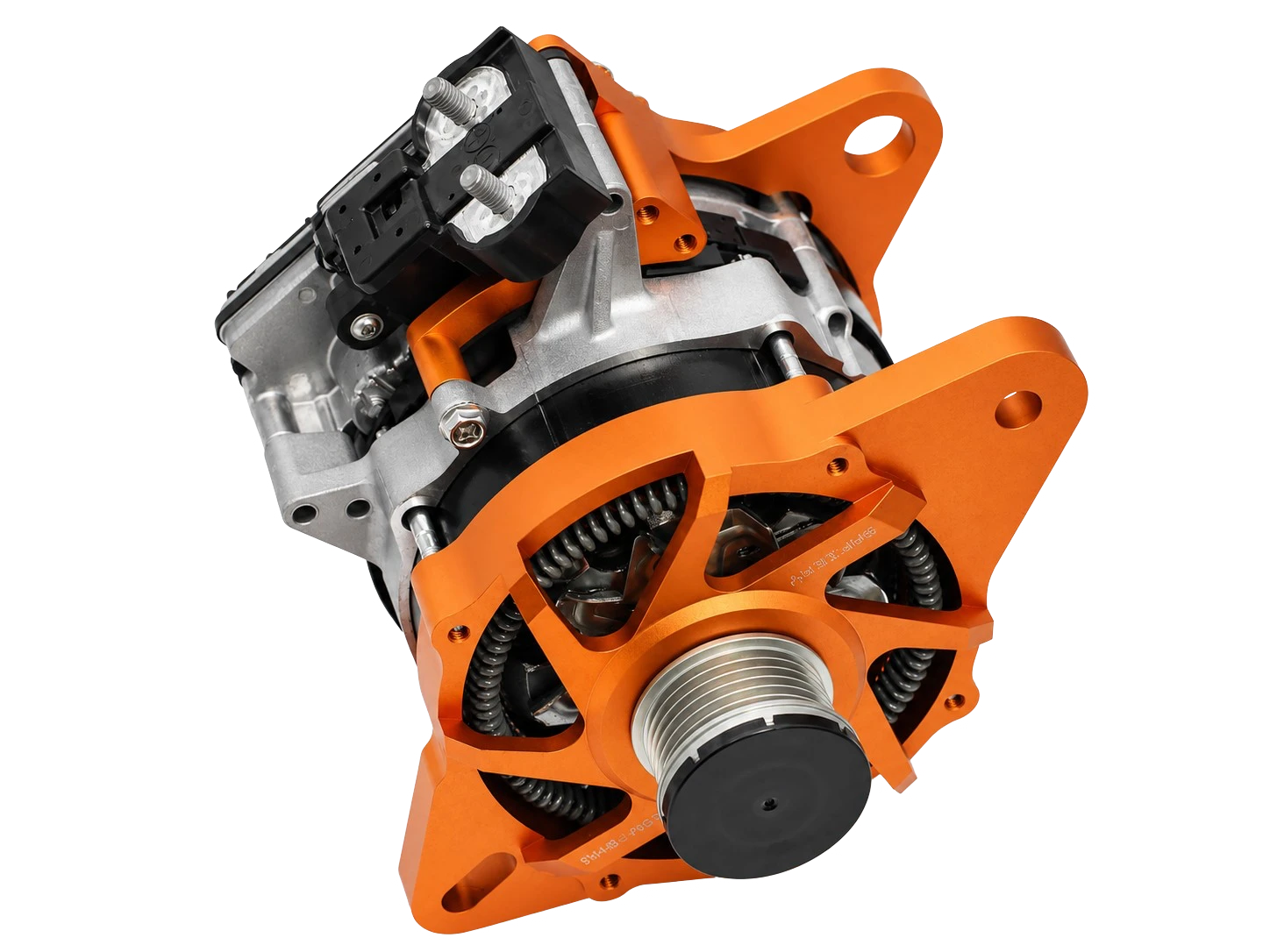

High Performance Alternators and CANbus Alternator Charging up to 200A Continuously

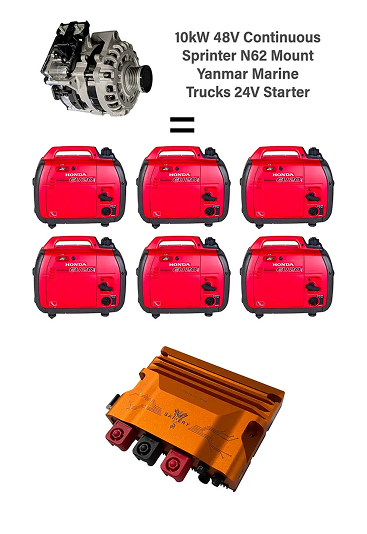

High Performance CANbus Alternator Charging up to 10kw Continuously

BLUE HEELER PACKAGES FOR 4WDs & RV's

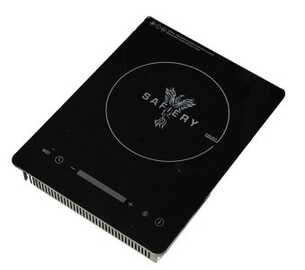

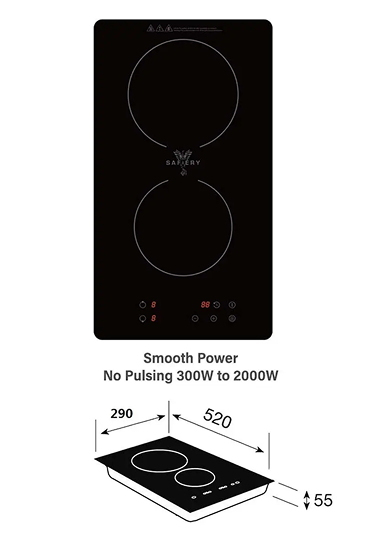

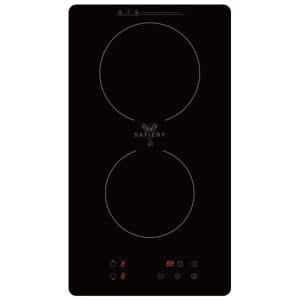

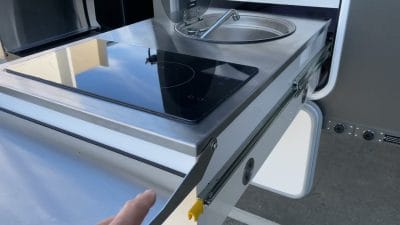

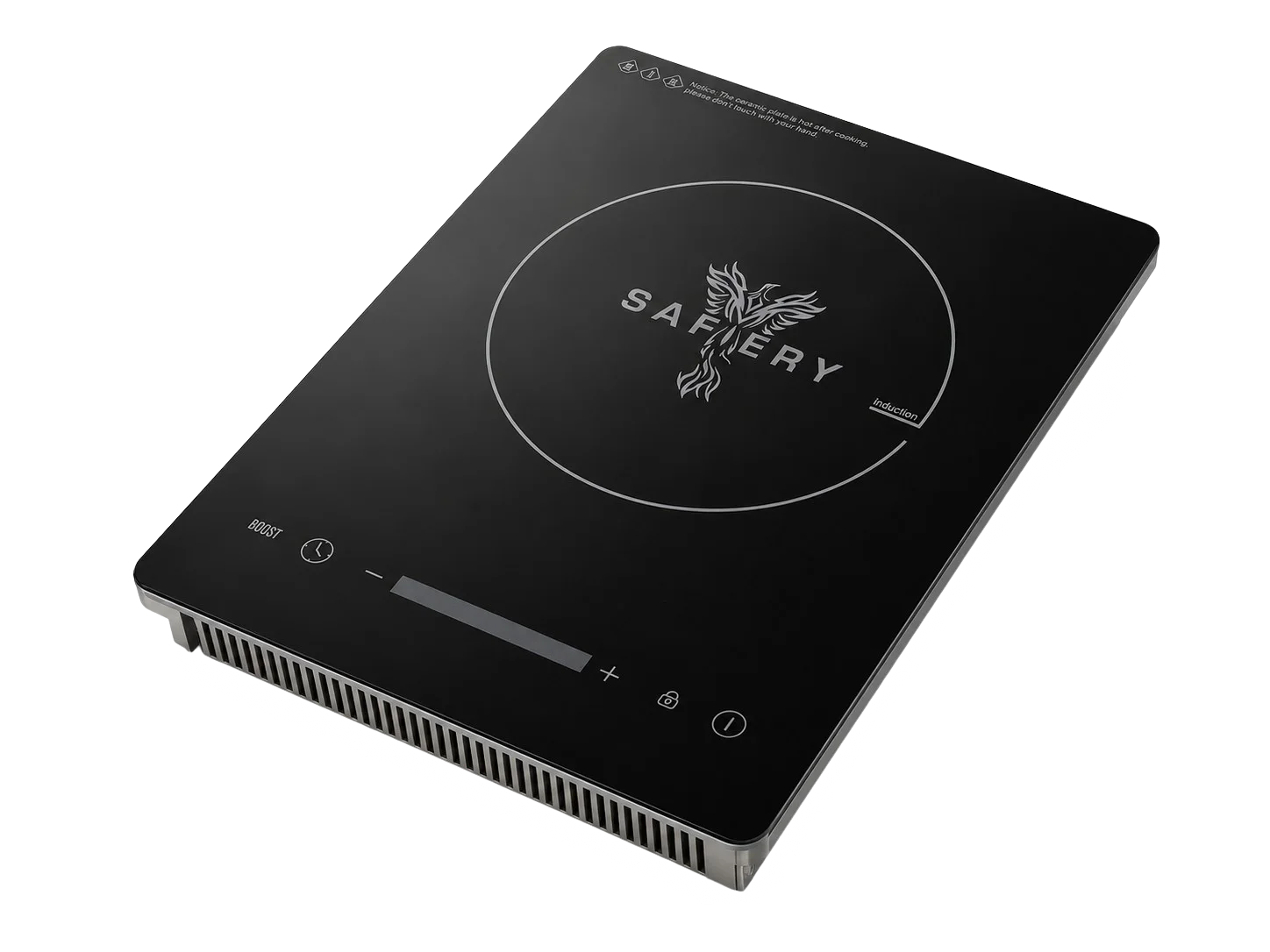

SMART INDUCTION COOKTOPS

UNDER FLOOR HEATING

COMPACT ICE MAKERS

ALL NIGHT AIR_CONDITIONING

NEAR INSTANT ELECTRIC HOT WATER

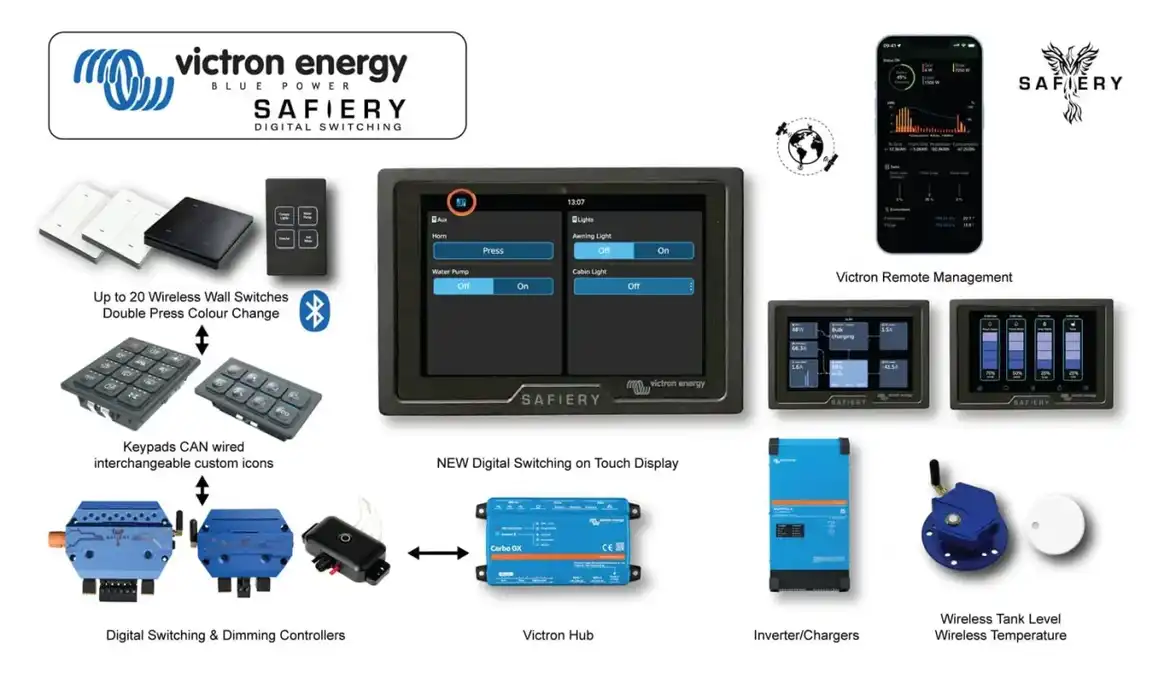

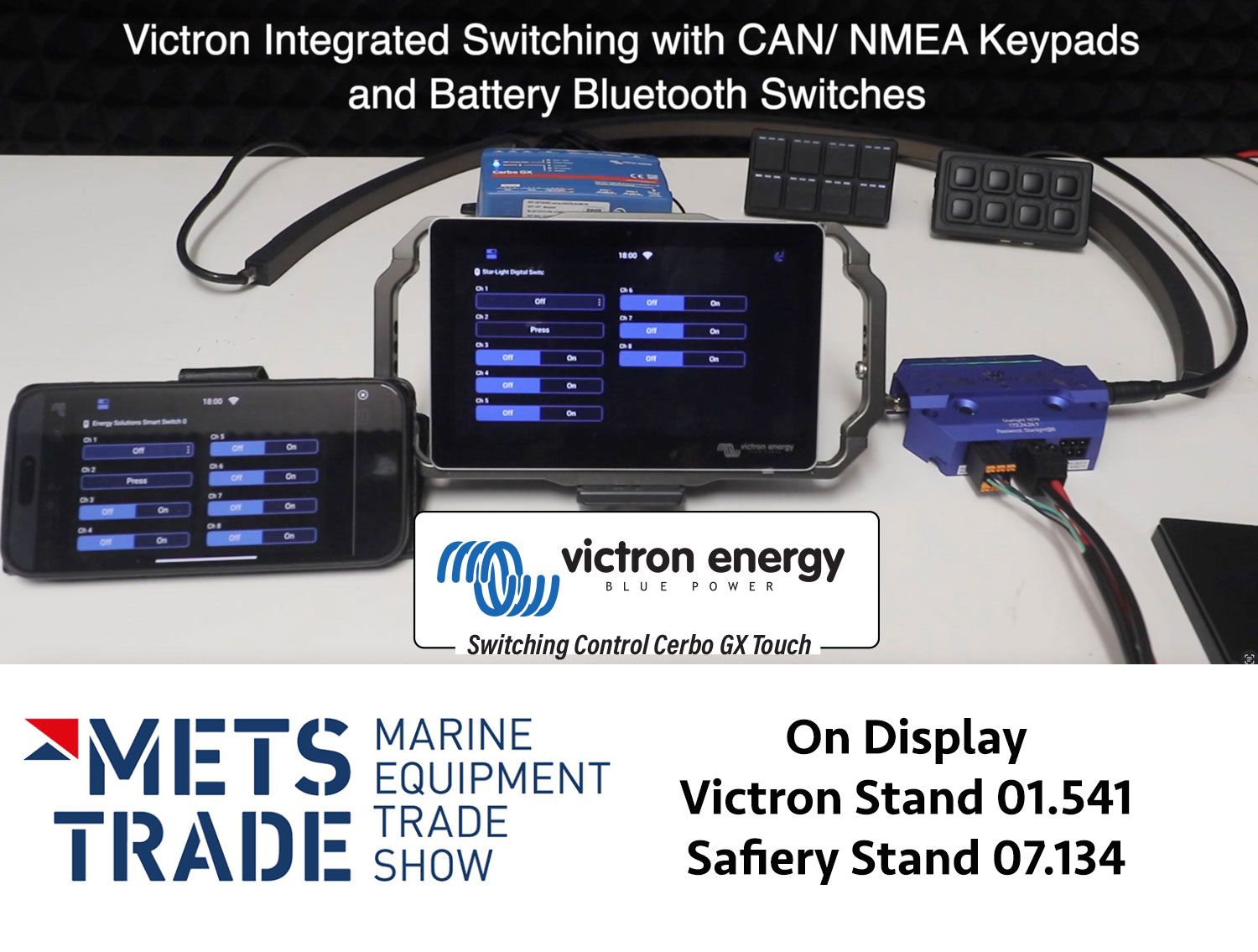

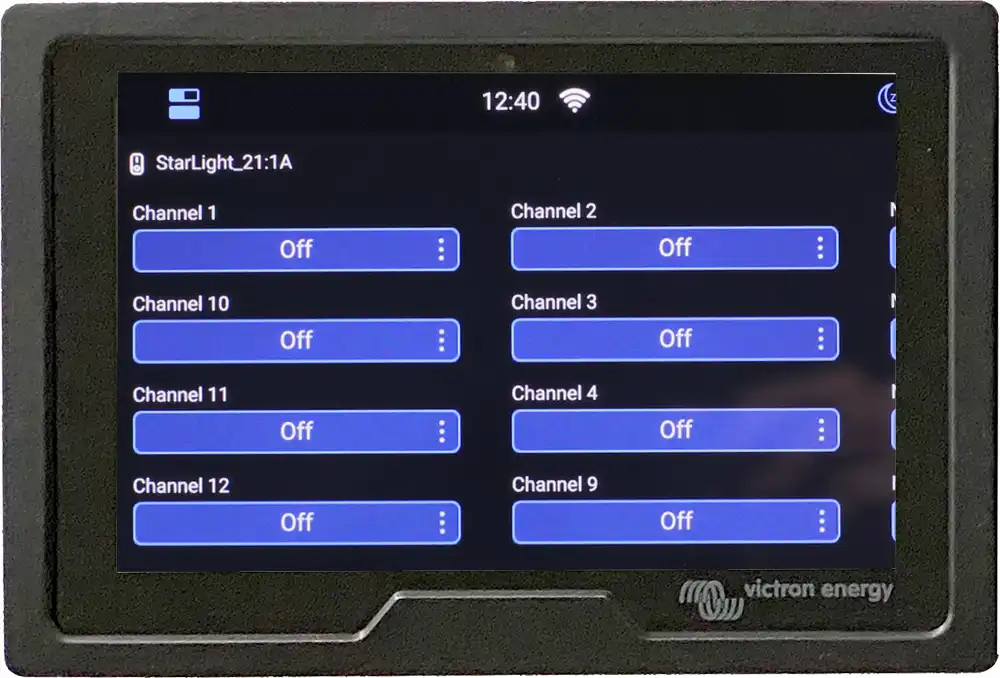

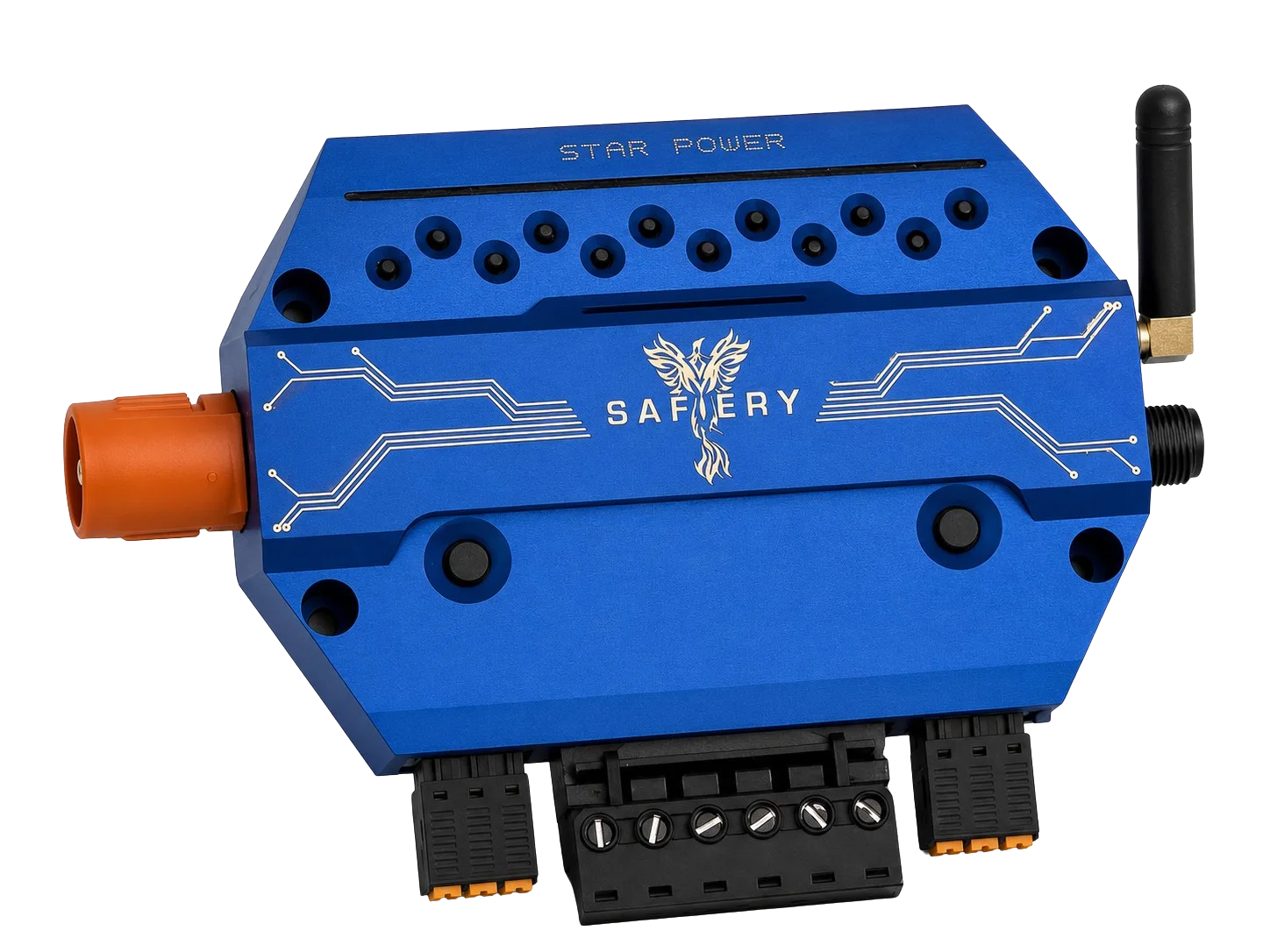

SMART 12V/24V SWITCHES

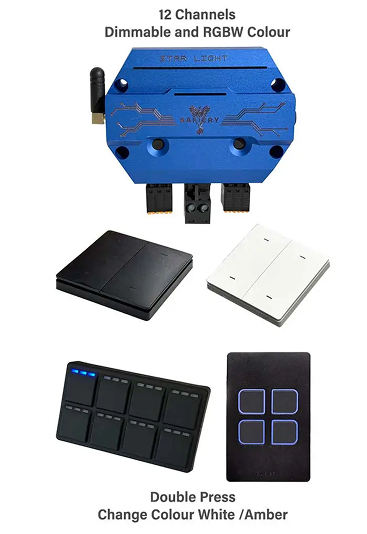

DUAL COLOUR LED LIGHTING

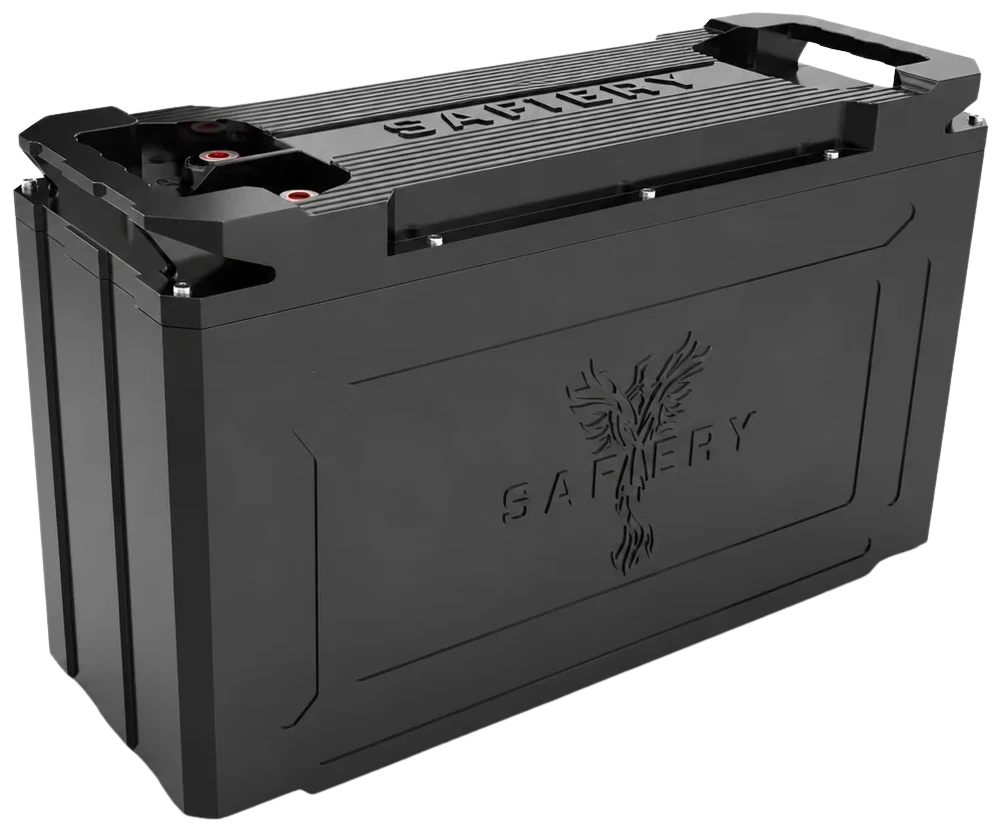

LITHIUM BATTERIES

SOLAR POWER

WAKESPEED 500 ALTERNATOR CONTROLLER MARINE

240V INVERTER POWER

RIDE HEIGHT AND PITCH/TILT

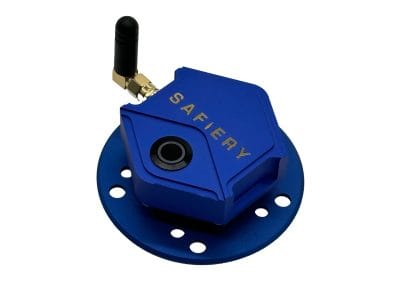

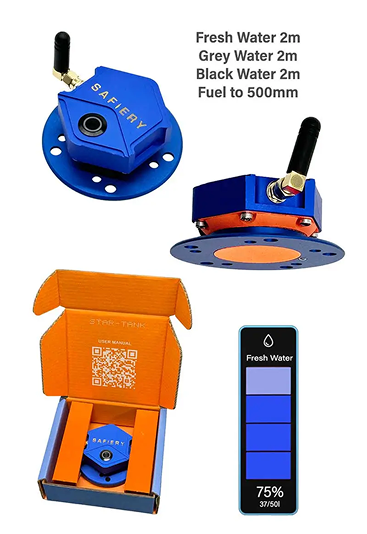

TANK CAPACITY
